NXGCell
NXGCell is an integrated user interface for the M5NS mobile 5G system for monitoring and modifying system parameters.
Features of NXGCell include:

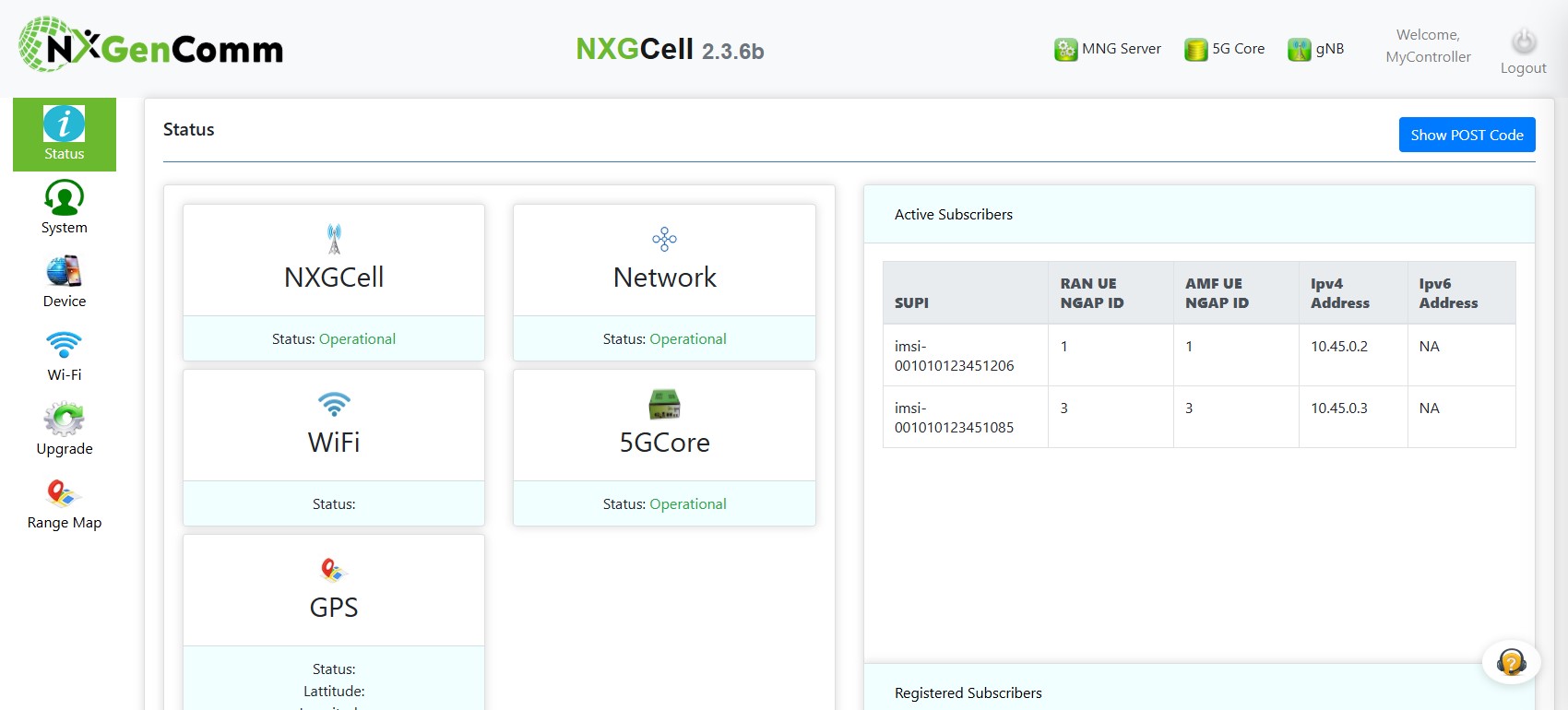

- Status monitoring for the 5G network, WiFi network, 5G core, and GPS.
- Logging fo current 5G subscribers and registered subscribers.
- Modify, add and delete subscribers from 5G core.
- Operational parameters, including PLMN, AMF address, ciphering, backhaul and core address.

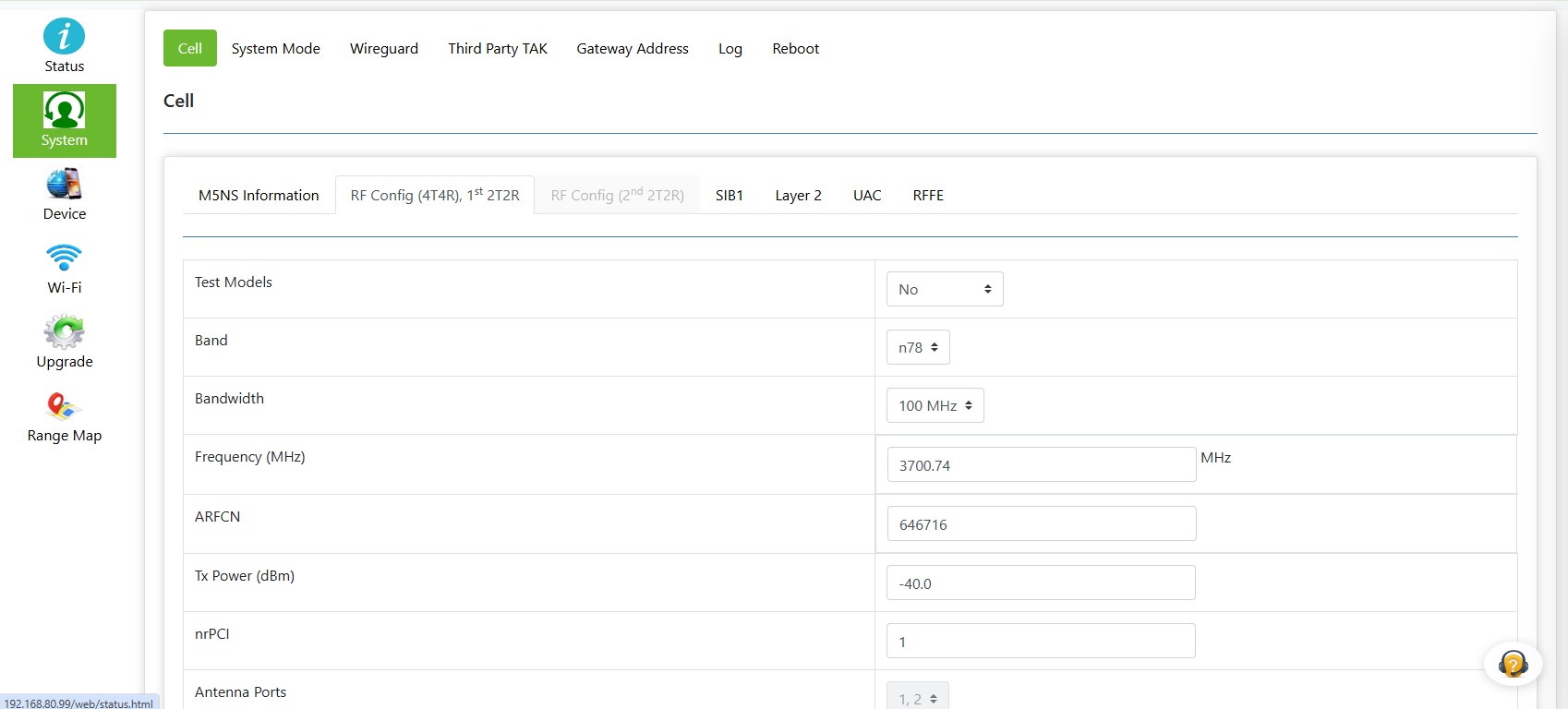

- RF parameters of the gNB, including band, bandwidth, center frequency, tx power, UL/DL slot configuration, and the enabling and disabling of DPD and test signals (16 QAM, 64 QAM, 256 QAM).
- Configure gNB for 1T1R, 2T2R, or 4T4R operation

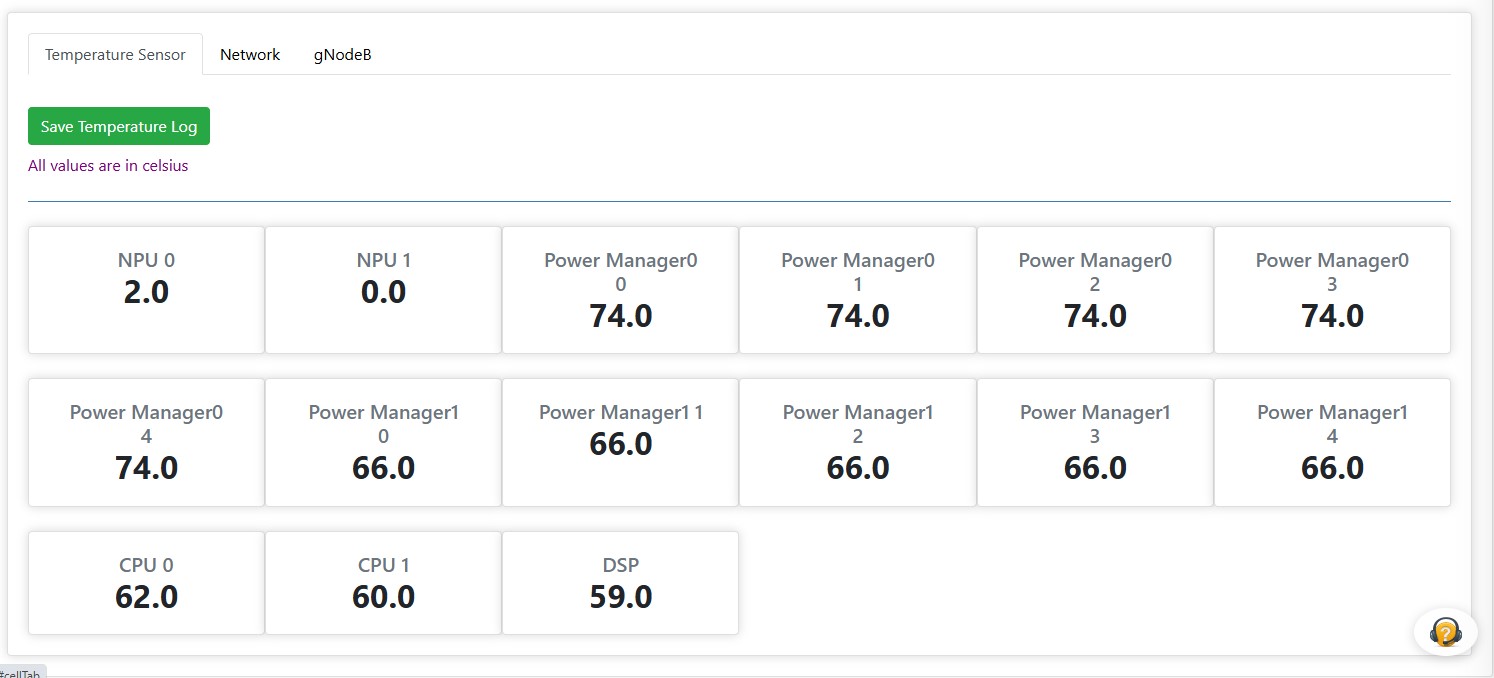

- Hardware monitoring of the system's internal temperature, including warnings for if the system temperature exceeds safe operational thresholds.
- Logging and collection of logs pertaining to network activity along the 5G network.
- Operational logging for the M5NS system.

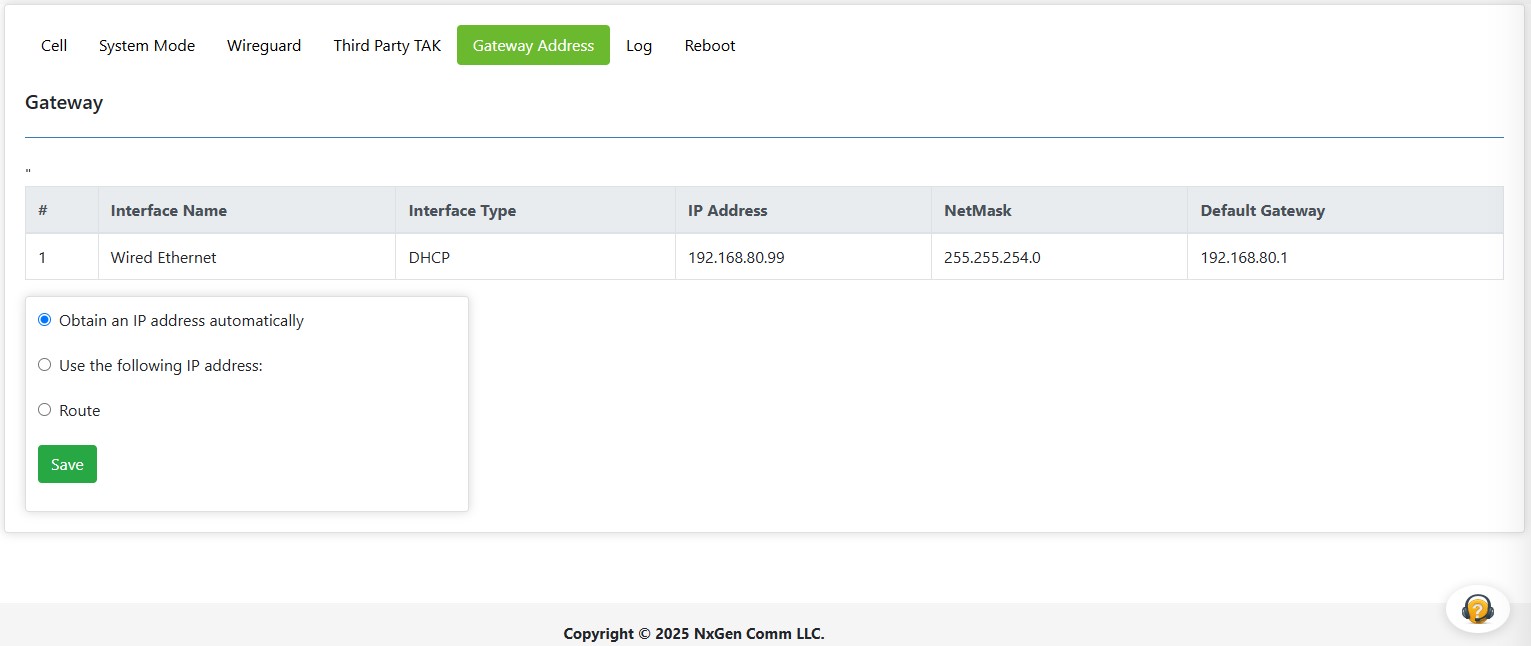

- gNB network routing and gateway management.
- Integrated Wireguard management and server creation.
- Integrated TAK server management and creation.
- Wi-Fi network management.
- Upgrading M5NS software.

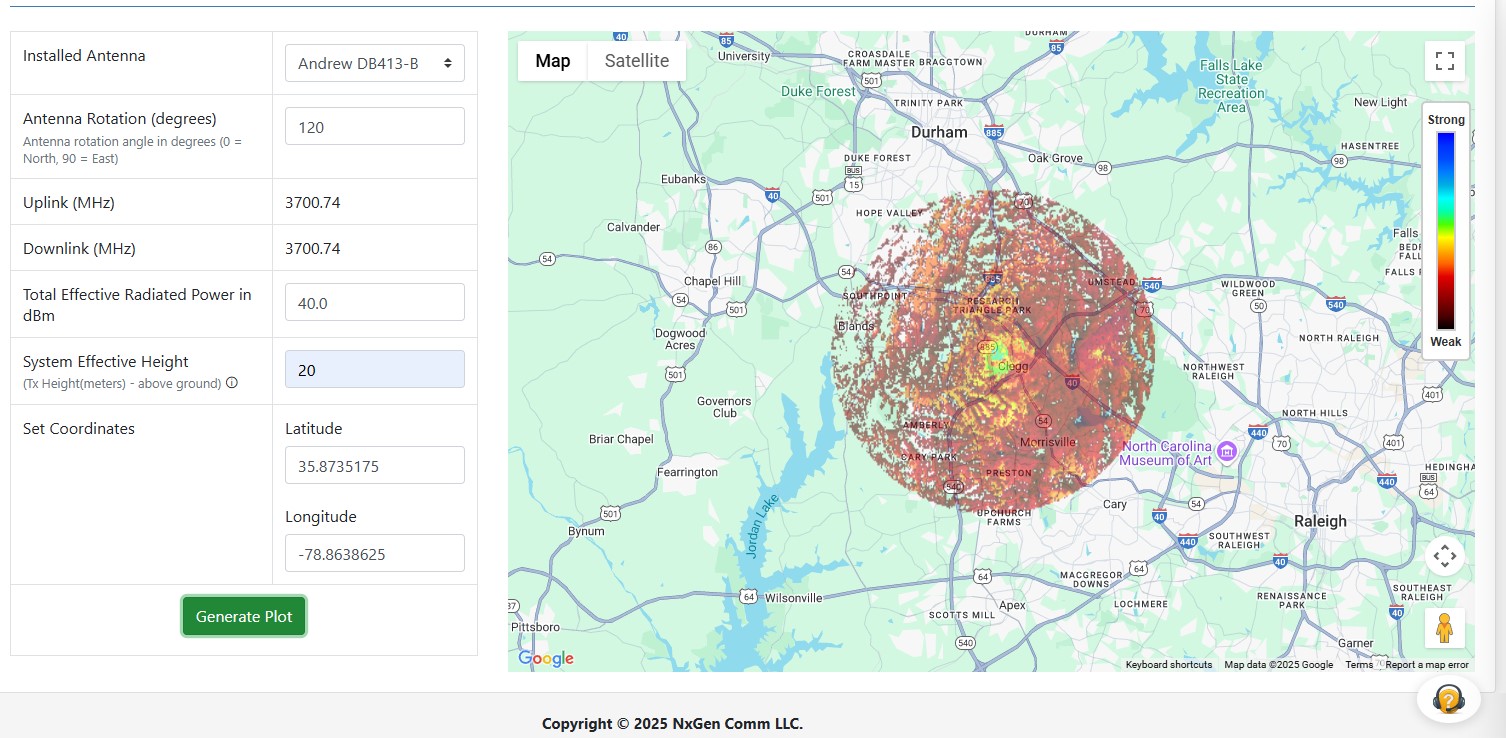

- Signal range calculation with pre-defined antennas
- NxGenComm
NxGen Comm delivers innovative wireless solutions using commercial technologies to solve challenging use cases.
