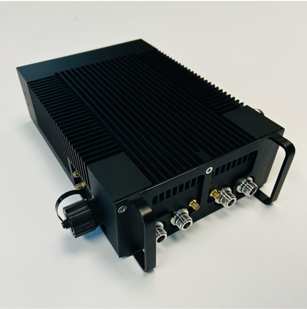

M5NS-JCP
Tactical
Flexible Multi-Waveform Capable Node
- Standalone Private 5G Bubble
- Relay
- Sensor Fusion
- Tier 1 Phoenix Engine
- 4x – 27-33 dBm TX
- Battery bay option
- EW: RF Sensing
- 64 users
- IP67 – Full rugged
Frequency & RF Capabilities:
- Frequency Range
Configuration 1: 75 MHz – 6 GHz, Configuration 2: 650 MHz – 7 GHz, Configuration 3: 5 MHz – 6 GHz ; FR2 Capable - Frequency Band Support
Support for all 3GPP FR1 Bands* (RFFE dependent)
- Available RFFEs (Bands)
n41, n46, n47, n77, n78, n79, n258. Multi-band RFFEs available - TX Power (dBm)
24, 28, 30, 33, 37, 40 dBm Power Options: 1W, 2W, 5W, 10W, 20W - TX/RX Chains
2T2R, 4T4R, 4T6R, 8T8R
RAN Components & Standards
- RAN Components
CU, DU, RU, consolidated gNB, gNB + core (complete cellular network on-the-move), UE (Modem), IAB Node (multi-hop 5G relay node) - 3GPP Release
15/16 compliance, 17/18 (in development)
- 3GPP Release
0, 2, 6, 7.2 (O-RAN Compliant) - Core Integration
Interoperable with multiple 5G cores
RF Scanning
- Frequency Range
Config 1:2.4-4.2 GHz, Config 2: 450 MHz-7.2 GHz, Config 3: DC-12 GHz - Instantaneous Bandwidth
Up to 100 MHz - Snapshot Duration
20 ms - Scan Rate
Config 1: 1s per 100 MHz, Config 2: 500 ms per 100 MHz, Config 3: 10 us per 100 MHz - Jammer Bandwidths
2, 5, 10, 20, 40, 100 MHz - Direction Find of Signal Accuracy
5″ (<=1″ in roadmap) - ADC Resolution
High Resolution ADCs - Analysis
Two-stage analysis with deep learning neural net classification - Processing
Realtime IQ processing, geofencing & DF triggers - Memory Buffer
Compressed sub-band frequency domain IQ samples
Sub-bands configurable from 15 KHz-1.92 MHz (up to 1024 bits) - Power Efficiency
50% power reduction vs FPGA-based 5DRs
Network Performance
- Bandwidth
3GPP bandwidths including 20, 40, & 100 MHz per channel: Up to 8 DL and 4 UL Channels Total DL/UL Bandwidth of 800 MHz/400 MHz - MIMO Layers
Up to 4 DL MIMO Layers (8 in roadmap), 4 UL MIMO Layers - Max Throughput
DL: 4Gbps/UL: 2Gbps - User Capacity
32, 64, 128 users (256 users in roadmap) - Latency
10-20 ms - Sectors
1-2
Physical Characteristics
- Form Factors
M5NS-JCP Tactical (11″x7.4) & (8.8″x7.4″ in Q2/Q3 2026) - Power Consumption
M5NS-JCP: 35-60W - Battery Life
Up to 8 hours off standard battery (no mission-specific optimization) - Deployment Options
Mounted, Dismounted, UAS, Munitions, Vehicles, Manpacks
Timing & Synchronization
- Sync Sources
GPS, NTP - Initial Sync Accuracy
200 ps - Battery Life
Up to 8 hours off standard battery (no mission-specific optimization) - Deployment Options
Mounted, Dismounted, UAS Munitions, Vehicle
Interfaces & Connectivity
- Network Interfaces
10 GB Ethernet, USB 3.0 - Backhaul Options
Wireless Modem for Host Nation Cellular/WiFi Backhaul - Integrated Services
Router/Switch, VPN, Application Server - Management Tools
NXGCell (on-board), NXGNet (remote)
Software & Management
- Operating System
Linux OS - NXGCell Management
Cell Management: Frequency bands, output power, MIMO configs, beamforming, user prioritization
Network Management: IP assignments, firewalls, VPNs, certificates, encryption
Coverage Mapping: Generate coverage maps with coordinates, heights, frequency profiles - TAK Integration
Server or client - APIs
Flexible APIs for seamless application integration
