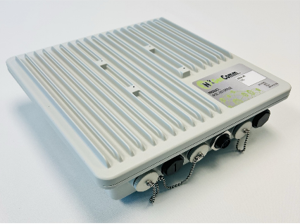

M5NS-JCP Enterprise

Home M5NS-JCP Enterprise
Platforms & Solutions

M5NS-JCP
 Enterprise

  • Flexible Multi-Waveform Capable Node
    • Standalone Private 5G Bubble
    • Relay
  • Sensor Fusion
  • Tier 1 Phoenix Engine
  • EW: RF Sensing
  • 4x, 8x MIMO – 37-40 dBm TX
  • TAK Server/Client
  • EW: RF Sensing
  • 128 users (roadmap)
  • IP67 .-20°C to +55°C

Frequency & RF Capabilities:

  • Frequency Range
    Configuration 1: 75 MHz – 6 GHz, Configuration 2: 650 MHz – 7 GHz, Configuration 3: 5 MHz – 6 GHz ; FR2 Capable
  • Frequency Band Support
    Support for all 3GPP FR1 Bands* (RFFE dependent)
  • Available RFFEs (Bands)
    n41, n46, n47, n77, n78, n79, n258. Multi-band RFFEs available
  • TX Power (dBm)
    24, 28, 30, 33, 37, 40 dBm Power Options: 1W, 2W, 5W, 10W, 20W
  • TX/RX Chains
    2T2R, 4T4R, 4T6R, 8T8R

RAN Components & Standards

  • RAN Components
    CU, DU, RU, consolidated gNB, gNB + Core (complete cellular network on-the-move), UE (Modem), IAB Node (multi-hop 5G relay node)
  • 3GPP Release
    15/16 compliance, 17/18 (in development)
  • 3GPP Release
    0, 2, 6, 7.2 (O-RAN Compliant)
  • Core Integration
    Interoperable with multiple 5G cores

RF Scanning

  • Frequency Range
    Config 1:2.4-4.2 GHz, Config 2: 450 MHz-7.2 GHz, Config 3: DC-12 GHz
  • Instantaneous Bandwidth
    Up to 100 MHz
  • Snapshot Duration
    20 ms
  • Scan Rate
    Config 1: 1s per 100 MHz, Config 2: 500 ms per 100 MHz, Config 3: 10 us per 100 MHz
  • Jammer Bandwidths
    2, 5, 10, 20, 40, 100 MHz
  • Direction Find of Signal Accuracy
    5″ (<=1″ in roadmap)
  • ADC Resolution
    High Resolution ADCs
  • Analysis
    Two-stage analysis with deep learning neural net classification
  • Processing
    Realtime IQ processing, geofencing & DF triggers
  • Memory Buffer
    Compressed sub-band frequency domain IQ samples
    Sub-bands configurable from 15 KHz-1.92 MHz (up to 1024 bits)
  • Power Efficiency
    50% power reduction vs FPGA-based 5DRs

Network Performance

  • Bandwidth
    3GPP bandwidths including 20, 40, & 100 MHz per channel: Up to 8 DL and 4 UL Channels Total DL/UL Bandwidth of 800 MHz/400 MHz
  • MIMO Layers
    Up to 4 DL MIMO Layers (8 in roadmap), 4 UL MIMO Layers
  • Max Throughput
    DL: 4 Gbps/UL: 2 Gbps
  • User Capacity
    32, 64, 128 users (256 users in roadmap)
  • Latency
    10-20 ms
  • Sectors
    1-2

Physical Characteristics

  • Form Factors
    M5NS-JCP Enterprise (12″x12″)
  • Power Consumption
    M5NS-JCP: 35-60W
  • Battery Life
    Up to 8 hours off standard battery (no mission-specific optimization)
  • Deployment Options
    Mounted, Dismounted, UAS Munitions, Vehicle

Timing & Synchronization

  • Sync Sources
    GPS, NTP
  • Initial Sync Accuracy
    200 ps
  • Deployment Options
    Mounted, Dismounted, UAS Munitions, Vehicle

Interfaces & Connectivity

  • Network Interfaces
    10 GB Ethernet, USB 3.0
  • Backhaul Options
    Wireless Modem for Host Nation Cellular/WiFi Backhaul
  • Integrated Services
    Router/Switch, VPN, Application Server
  • Management Tools
    NXGCell (on-board), NXGNet (remote)

Software & Management

  • Operating System
    Linux OS
  • NXGCell Management
    Cell Management: Frequency bands, output power, MIMO configs, beamforming, user prioritization
    Network Management: IP assignments, firewalls, VPNs, certificates, encryption
    Coverage Mapping: Generate coverage maps with coordinates, heights, frequency profiles
  • TAK Integration
    Server or client
  • APIs
    Flexible APIs for seamless application integration
